E-Scale Solution:

Introduction:

The main controller of this solution is a 32-bit MCU (MG32F02V032) with a 24-bit high precision ADC (MAD2402). The weight of the object is converted into an electrical signal by a pressure sensor, which is processed by the MCU and then the weight data is presented on the display screen. It provides accurate and reliable weight measurement and is suitable for household weighing or commercial /industrial measurement applications.

Features:

M0 (MG32F02V032) Features:
 - Low power consumption (1.25μA@sleep mode)

 - Supports hardware ARGB Serial Bus) with 4 channels for faster control of at least 100 ARGB LEDs

 - 12-bit 1Msps SAR ADC to achieve accurate detection
 - Industrial Operating Temp.: -40℃ ~ +105℃

ADC (MAD2402) Features:

 - ADC Resolution 24 Bits, one set Differential Inputs

 - Two-wire serial port for ADC data output

 - Default mode::

    *Selectable 10SPS or 40SPS output data rate by PD_SCK clock number
    *Low-Noise PGA gain of 128
 - ADC command mode :
    *Programmable output rates from 10SPS to 1280 SPS
    *Programmable gain of 1, 2, 4, 8, 16, 32, 64, 128

Applications:

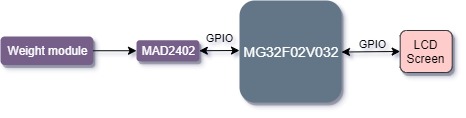

Block Diagram:

Related Products:

ARM Cortex-M0 Value Line (MG32F02V Series): https://www.megawin.com.tw/products-sub/M0-Value-Line

Delta-Sigma ADC: https://www.megawin.com.tw/products-sub/Delta-Sigma-ADC

Technical Support Files : (Please click to download)

1. ReferenceDesign Document

2. Hardware File

3. Firmware File

4. BOM List
