LCD Demo Solution:

Introduction:

This solution is based on a high-performance MCU (MG32F02K series), which integrates an LCD driver, memory, and peripheral interfaces (such as UART/SPI/I2C, etc.), reducing the need for external components and lowering overall system cost. It is well-suited for applications in industrial control instruments, automotive dashboards, small home appliances (such as e-shavers or rice cookers), and medical display devices.

Features:

 - Supports 288 multi-segment LCD display with flexible COM/SEG pin mapping, reducing PCB layout complexity.

 - Supports UART bootloader, allowing in-system firmware updates via communication interfaces without disassembling the device, significantly simplifying production and maintenance processes.

 - Suitable for handheld instrument sensor applications, with built-in ADC, OPA, and PGA for detecting and amplifying small signals; ACMP for threshold setting; and DMA for fast data transfer.

 - Supports wide operating voltage range (1.8V to 5.5V) and industrial-grade temperature up to 105°C, enabling broader application scenarios.

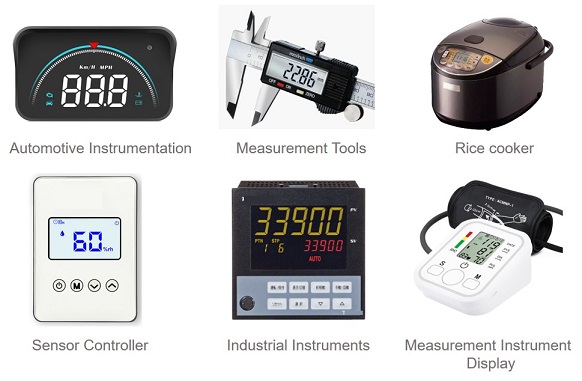

Applications:

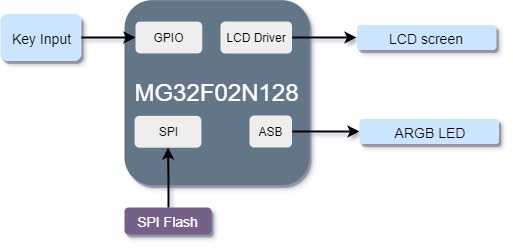

Block Diagram:

Related Products:

ARM Cortex-M0 LCD Line: https://www.megawin.com.tw/zh-TW/products-sub/M0-LCD-Line

MG32F02K Series: https://www.megawin.com.tw/product/MG32F02K-SERIES

Technical Support Files : (Please click to download)

1. ReferenceDesign Document

2. Hardware File

3. Firmware File

4. BOM List
