ARM Cortex-M0
Value Line
Base on ARM Cortex-M0 , it is developed with excellent noise immunity capability and excellent encryption technology of the traditional 8051 MCU. Built-in PWM function with center/edge-align and dead time control , flexible pin alternate function selection, multiple reset Resources, High speed I/O modules and fast comparators (ACMP) can be quickly imported and applied to complex Electrical Engineering control systems with multiple sets of high-speed peripheral hardware such as UART, SPI, I2C andASB
SERIES :

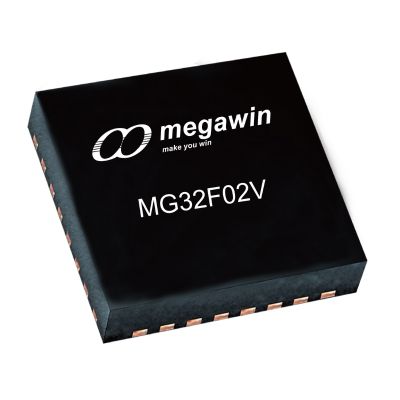

MG32F02V SERIES
| item | Operating Voltage | Flash ROM | Data RAM | Max Operation Fequency | Timer | IO | ADC | ACMP | Communication | CCP | ISP IAP | Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MG32F02V032 | 1.8V~3.6V | 32KB | 4KB | 48MHz | 6+RTC | 17、29 | 12Bit、8-CH | UARTx2、I2C、PWM、CRC32、DMA、SPI、QPI | 6-CH | YES | TSSOP20、LQFP32、QFN32 |
MG32F02D SERIES
| item | Operating Voltage | Flash ROM | Data RAM | Max Operation Fequency | Timer | IO | ADC | ACMP | Communication | CCP | ISP IAP | Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MG32F02D032 | 2*7V~5*5V | 32KB | 2KB | 24MHz | 3 | 13 | 4-CH | NA | UARTx2、I2C、SPI、PWM、DACx2 | 2-CH | YES | QFN20 |
