8080 LCD and SPI LCD display with USB Solution:

Introduction:

This solution provides a fast and clear LCD display mechanism for the application through the 8080 LCD interface of the master MCU chip (MG32F02U128).

Features:

- Use QEI code (*Quadrature Encoder Interface)
- EMB Quick Update Display Screen
- DAC adjustable audio output

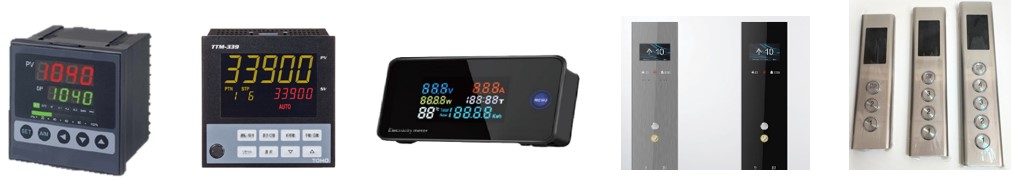

Applications:

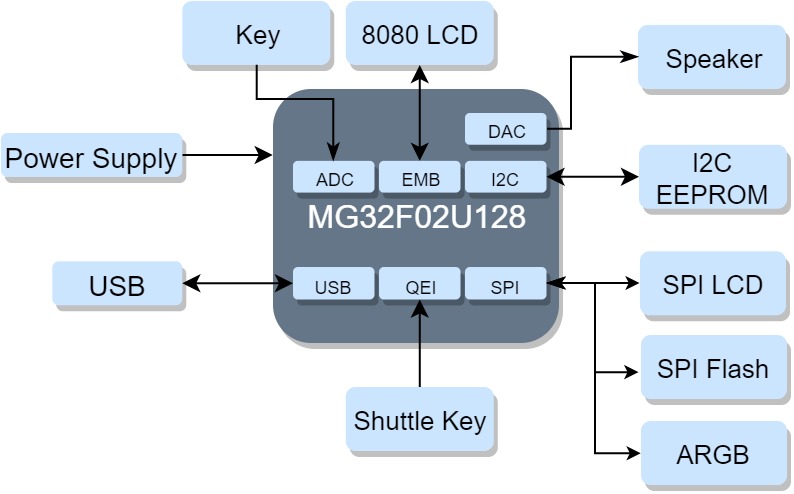

Block Diagram:

Related Products:

ARM Cortex-M0 USB Line: https://www.megawin.com.tw/products-sub/M0-USB-Line

MG32F02U128: https://www.megawin.com.tw/product/MG32F02U128

Technical Support Files  : (Please click to download)

1. ReferenceDesign Document

2. Hardware File

3. Firmware File

4. BOM List
