Beyond Illumination: MCUs create a new intelligent vision for vehicles

In the highly intelligent and system-integrated platform that is the modern automobile, lighting systems are often overlooked—yet they are a critical component of vehicle safety. More than just providing visibility at night or in harsh weather, vehicle lights serve as an optical communication interface for real-time interaction between the car and its external environment. Whether signaling turning intentions, braking alerts, or dynamic lighting effects like sweeping or breathing lights, automotive lighting has evolved far beyond mere illumination—it has become a smart, algorithm-driven platform for active safety signaling.

Microcontrollers (MCUs) play a central control role in automotive lighting systems. From basic on/off switching and turn signal blinking to more advanced functions such as LED brightness adjustment and ambient lighting effects, MCUs are omnipresent. They not only receive information from sensors and in-vehicle networks, but also process commands in real time and precisely control lighting output. MCUs are thus an indispensable component in enabling intelligent lighting features in modern vehicles.

High Cost-Performance: MG82F6D17 Series

As a crucial part of automotive electronic systems, lighting modules place high demands on the stability and reliability of MCUs. For this reason, many companies tend to choose internationally renowned brands such as ST and Microchip. However, the MG82F6D17 series from Megawin Technology, a flagship product based on the 8051 architecture, delivers outstanding performance in both functional configuration and stability—comparable to foreign brands in the same class—while offering a higher cost-efficient. Currently, the MG82F6D17 series has been widely adopted in various automotive lighting systems, demonstrating excellent real-world performance.

Automotive high and low beam headlights applications

The MCU (MG82F6D17 series) is primarily responsible for core functions in automotive lighting systems, including switch control, brightness adjustment, and logic operations. The diagram below illustrates its complete system architecture in a lighting application.

The built-in 12-bit ADC enables precise monitoring of temperature changes within the lighting module, providing early warnings of potential overheating and effectively preventing safety risks caused by rising temperatures. Its PWM output, with finely adjustable frequency, ensures stable brightness and smooth transitions, meeting the demands of various lighting effects.

In addition, robust and reliable support for the LIN communication protocol ensures seamless data transmission between the MCU and other electronic modules within the vehicle, enhancing overall system integration and control efficiency.

Advanced Function M0: MG32F02x Series

It is clear that for relatively basic lighting applications such as high/low beam headlights, the MG82F6D17 series MCU is undoubtedly a high-quality, cost-effective choice. For more advanced and complex intelligent lighting needs, Megawin Technology also offers the more powerful 32-bit M0-based MG32F02x series, providing customers with a broader range of options.

Building on its stability, the MG32F02x series further enhances computing speed, the number of I/O pins, memory capacity, and integration of features—fully meeting the design requirements of high-end lighting systems such as intelligent headlamps and dynamic lighting effects.

To address the growing demand for RGB lighting effects in automotive ambient lighting, stage-style lighting, and creative light applications, Megawin Technology has also introduced the MG32F02V032 series, which features a built-in ARGB serial bus function. Through hardware-level data processing, this series greatly simplifies the lighting control process, helping customers drive ARGB lighting arrays more quickly and reliably, while delivering richer and smoother lighting experiences.

Automotive Grade Level: MGEQ1C064 Series

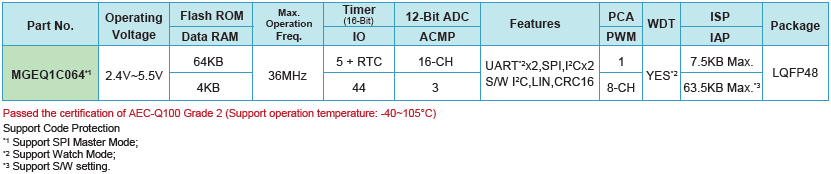

In addition, Megawin Technology’s MGEQ1C064AD48 chip has passed AEC-Q100 (Grade 2) automotive-grade certification, demonstrating its ability to operate reliably under harsh in-vehicle conditions. It fully meets the high reliability requirements of automotive applications and has been successfully mass-produced and adopted by automotive customers. This chip supports a wide range of in-vehicle control and application scenarios, helping customers accelerate solution development and shorten the time to mass production.

The MGEQ1C064AD48 is suitable for a wide range of automotive functions, including front lighting, ambient lighting, dynamic taillights, power seats, wireless charging, power tailgates, wiper control, window control, climate control, and side mirrors. It performs especially well in lighting applications, making it an ideal choice for implementing intelligent automotive lighting solutions.

If you are interested in the Automotive MCU series or need further information, please visit the M0 Series Product pages of Megawin Technology:

https://www.megawin.com.tw/products-sub/M0-Base-Line

https://www.megawin.com.tw/products-sub/M0-Value-Line
