Product Information

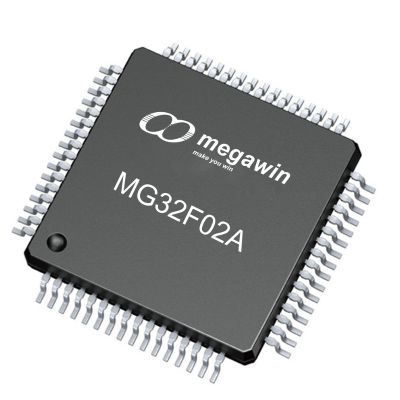

ARM Cortex-M0

Base Line

Base on Arm® Cortex®-M0 , it is developed with excellent noise immunity capability and excellent encryption technology of the traditional 8051 MCU. Built-in PWM function with center/edge-align and dead time control , flexible pin alternate function selection, multiple reset Resources, High speed I/O modules and fast comparators (ACMP) can be quickly imported and applied to complex Electrical Engineering control systems with multiple sets of high-speed peripheral hardware such as UART, SPI, I2C and CRC(Cyclic Redundancy Check). In addition, the External Memory Bus(EMB) module supports a variety of interface displays (TFT-LCD), which can be applied to small and medium-sized display panels such as automotive/education/industrial/medical/...etc. The maximum operating speed is 48 MHz, the Flash are 32KB~128KB, respectively, and the operating voltage is 1.8 V~5.5 wide power supply.

SERIES :

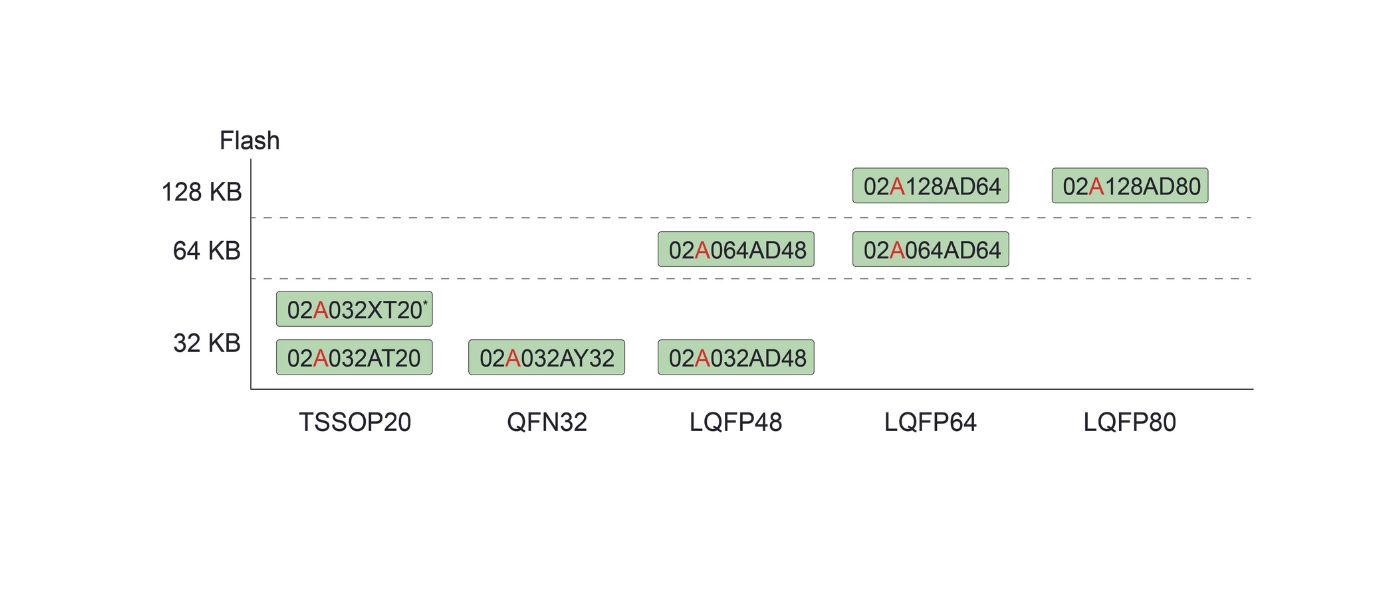

MG32F02A SERIES

item	Operating Voltage	Flash ROM	Data RAM	Max Operation Fequency	Timer	IO	ADC	ACMP	Communication	CCP	DAC
MG32F02A032	1.8V~5.5V	32KB	4KB	48MHz	5+RTC	17、29、44	12Bit、12-CH	2	UARTx2、I2C、CRC、DMA、SPI、QPI、PWM	4-CH	NA
MG32F02A064	1.8V~5.5V	64KB	8KB	48MHz	7+RTC	44、59	12Bit、16-CH	2	UARTx7、I2Cx2、EMB、CRC、DMA、SPI、QSPI、OPI	8-CH	12-Bit、1-CH
MG32F02A128	1.8V~5.5V	128KB	16KB	48MHz	7+RTC	59、73	12Bit、16-CH	2	UARTx7、I2Cx2、EMB、CRC、DMA、QPI、OPI、SPI	8-CH	12-Bit、1-CH
