Smart Card Reader Solution:

Introduction:

The solution runs on a 32-bit MCU with LED indicators, a high-resolution graphic LCD and a large programmable memory. These features enable it to help users perform secure smart card transactions in both indoor and field environments.

Features:

 - USB communication and power supply
 - SPI LCD Display: Display picture on 240x320 LCD through SPI interface
 - Smart Card Module

Applications:

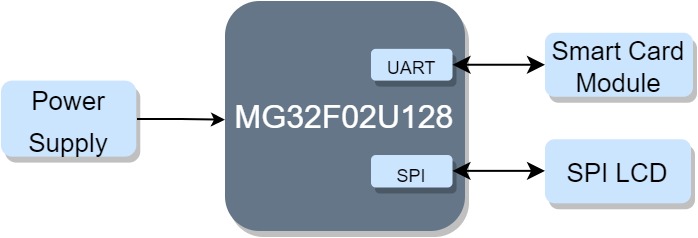

Block Diagram:

Related Products:

ARM Cortex-M0 USB Line: https://www.megawin.com.tw/products-sub/M0-USB-Line

MG32F02U128: https://www.megawin.com.tw/product/MG32F02U128

Technical Support Files : (Please click to download)

1. ReferenceDesign Document

2. Hardware File

3. Firmware File

4. BOM List
