LCD with ARGB LED Display Solution:

Introduction:

This solution brings an ARGB Series Bus for hardware control of ARGB LED strips through the master MCU (MG32F02V032), which can easily control ARGB LED strips such as the WS2812B

Features:

 - 10,000 LED light beads can be lit: through ARGB Series Bus.
 - Faster switching of lighting effects: DMA via hardware control.


Applications:

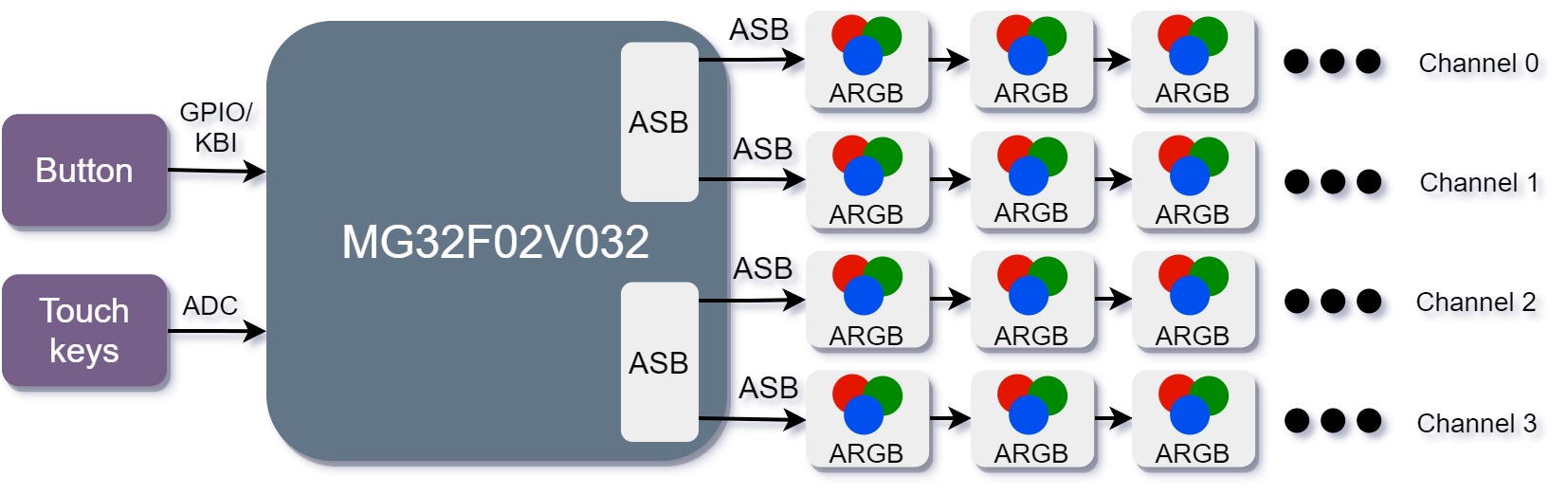

Block Diagram:

Related Products:

ARM Cortex-M0 Value Line: https://www.megawin.com.tw/products-sub/M0-Value-Line

MG32F02V032: https://www.megawin.com.tw/product/MG32F02V032

ARGB Demo Video:

Technical Support Files : (Please click to download)

1. ReferenceDesign  Document

2. Hardware File

3. Firmware File

4. BOM List
