Gaming Keyboard Solution:

Introduction:

This solution adopts MG32F02U128 as the main MCU chip, which can control smoothly the lighting effect on the keyboard, mainly for gaming application.

Features:

 - Smoother lighting effect with “Hardware Divider + Multi-PWM” technology
 - Supports more than 100 keycaps scanning

Applications:

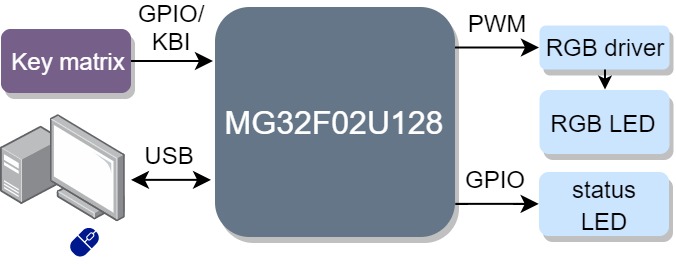

Block Diagram:

Related Products:

ARM Cortex-M0 USB Line: https://www.megawin.com.tw/products-sub/M0-USB-Line

MG32F02U128: https://www.megawin.com.tw/product/MG32F02U128

Gaming Keyboard Demo Video:


Technical Support Files: (Please click to download)

1. ReferenceDesign Document

2. Hardware File

3. Firmware file

4. BOM List
