PD Wireless Charging Solution:

Introduction:

Megawin Technology provides PD (Power Delivery) solutions for USB Type-C interface to meet the needs of charging mobile devices or small appliances equipped with PD protocol to solve the problems of inconvenient charging or forgetting to bring charging cables, which can help customers to bring wireless charging products to the market more easily and quickly.

Features:

PD protocols and Sink side:
 - No need for dedicated PD IC, only two transistors to save cost
 - Highly efficient H/W en/decoder, no need for 32-bit core
 - Support PD3.0 PPS protocol, F/W customize charging power and voltage

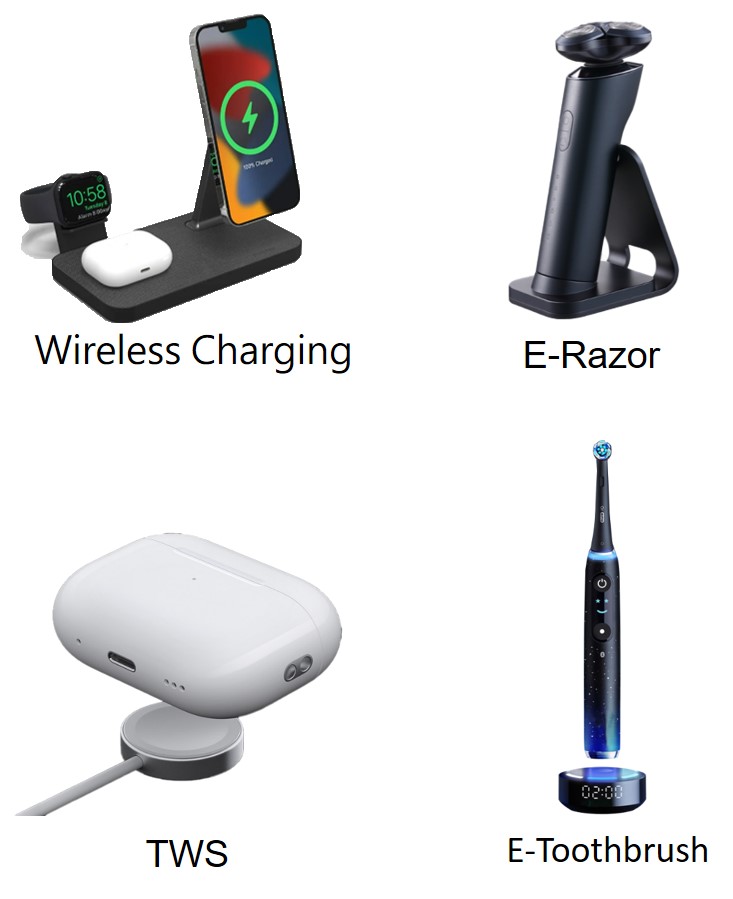

Applications:

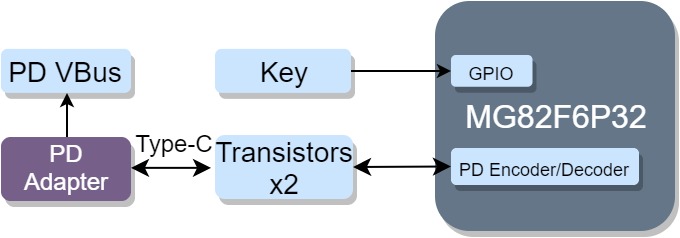

Block Diagram:

Related Products:

8051MCU 1T 8051 MCU: https://www.megawin.com.tw/products-sub/1T-8051-MCU

MG82F6P32: https://www.megawin.com.tw/product/MG82F6P32

Technical Support Files : (Please click to download)

1. ReferenceDesign  Document

2. Hardware File

3. Firmware file

4. BOM List
