Popular High-Speed Blower Applications

Brushless DC motors (BLDC) are used in high-speed air blowing applications, including high-speed hair dryer, hand dryers, high-speed blowers, shoe dryers, etc. This article mainly focuses on the two major applications of high-speed hair dryer and hand dryers, and introduces them to you.

Introduction to BLDC high-speed hair dryer

Because the traditional hair dryer design is relatively bulky, hair drying usually take more than ten minutes, and high temperature damage to hair, resulting in recent years BLDC high-speed blow dryer is more and more popular, because it avoids the above shortcomings. Megawin Technology has also responded to the advantages of BLDC high-speed hair dryer, has been launched the solution, the main control chip using the MDE design of the MCU (CGF082A). Based on the high-speed hair dryer needs high- speed, temperature control, gear memory, etc., CGF082A is very suitable for its requirements. The CGF082A has a built-in MDE engine for hardware FOC control, and also a 600V N/N Gate-Driver built-in, and an internal Flash for EEPROM.

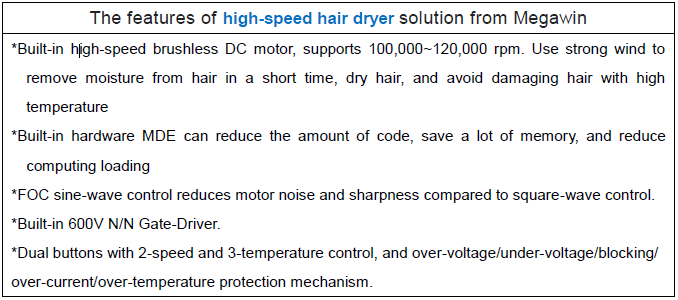

The features of high-speed hair dryer solution from Megawin：

High-speed hair dryer use scenes & people:
●Scenes: Home use, beauty salon
●Targets: Professional salon and stylist, people who have high requirements for hair care (after perming and coloring/damaged hair), people who like fast drying/quiet experience, people who want high-tech home appliances.

Introduction to BLDC high-speed hand dryer

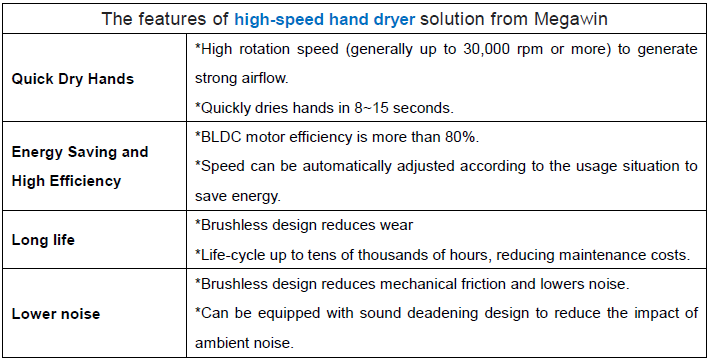

BLDC motor control can also be applied to hand dryers (e.g., automatic hand dryers in restrooms), which is a modern and efficient technical solution. A BLDC hand dryer generally contains: air inlet (mostly with filter), high-speed BLDC motor and fan element, heater (some models will be omitted to save energy), infrared sensor, and exhaust (air flow centralized outlet). Megawin Technology's MCU (CGF082A) can also be used to develop high-speed hand dryer solutions, and its features are described as follows.

Hand Dryer Application Scenes:
●Malls, airports, office buildings, restaurants, hospitals, schools, hotels.... etc.

CGF082A Specification

●The CGF082A adopts a dual-core design: 8051 core + MDE motor control core. 8051 core is used for MDE parameter configuration and other daily affairs control, while MDE core is used to complete the motor's FOC operation control. The FOC control is no longer done by the software, but left to the hardware MDE to handle.
●Built-in 600V N/N Gate-Driver
●Built-in 16KB Flash / 256B IRAM / 512B XRAM, EEPROM (last 256 bytes of Flash)
●UART, 8-CH ADC, IIC, 1-wire RF/IR decode, CRC, PWM, Capture, OPA, OCP (over-current protection)

CGF082A Application diagram

High Speed Blower Application PCB

If you are interested in the High-speed hair dryer solution or need further information, please visit the website of Megawin Technology:
https://www.megawin.com.tw/application/Motor-Control-Hair-Dryer

Feel free to contact one of our dealers, or request one of our sales representatives (sales@megawin.com.tw)。
