With the rapid arrival of the Internet of Things (IoT) era, connected devices are increasingly prevalent in daily life and industrial applications. Yet beyond the fancy industry buzzwords, the core requirement for most IoT devices comes down to six words: Connect reliably, operate stably.
• Connect reliably: The MCU must seamlessly communicate with various connectivity modules. Interfaces like UART, SPI, and I2C are essential, with sufficient multi-channel serial ports left available to run 4G, WiFi, and Bluetooth modules simultaneously.
• Operate stably: Devices are often deployed outdoors, in factories, or inside vehicles, where high temperatures, electromagnetic interference, and voltage fluctuations are common. An MCU’s reliability and anti-interference capability directly determine product lifespan.
Today, let’s explore how Megawin Technology MCU addresses these critical pain points to serve as a practical, dependable choice for IoT applications.
Built on the Arm® Cortex®-M3 core, the Megawin Technology MG32F1xx series (referred to as the M3 Series) is purpose-built for harsh operational environments. Rather than pursuing extreme computing benchmarks, it focuses on peripheral richness, interface flexibility, and system reliability.
Megawin M3 series spec table
From the specifications, the M3 Series achieves a balanced sweet spot across clock speed, memory, and peripherals:
• Sufficient Processing Power: Up to 96MHz main frequency—more than enough for protocol parsing and data reporting.
• Ample Memory Capacity: 128KB–256KB Flash + 28KB–64KB SRAM, leaving adequate headroom even after running RTOS and communication protocol stacks.
What is the most common IoT device architecture? Typically, the MCU serves as the host controller connected to a 4G module for wide-area networking, a Bluetooth/WiFi module for short-range communication, and several sensors for data collection. This requires the MCU to manage multiple peripherals simultaneously.
• Abundant Interfaces: Up to 5x UART, 2x I2C, 3x SPI / 1x QSPI, 1x USB Device, 2x I2S (shared with SPI 2/3), 1x CAN, and 1x SDIO. This ensures 4G, Bluetooth/WiFi modules, and sensors operate concurrently without signal contention.
• Advanced Data Processing: Integrated multi-channel 12-bit ADC/DAC, 3x OPAs, and multiple timers to meet high-precision data acquisition and control requirements.
• Precise Time Management: Features an RTC (Real-Time Clock) with an independent battery domain, making scheduled reporting and data timestamping straightforward.
3. Real-World Case: Concurrent 3-Channel UART in Smart Sanitizers
Taking a smart sanitizer equipped with a 4G module as an example, the solution utilizes the flagship MG32F104 as the main controller:
1) UART1 communicates with the 4G module to execute network registration, HTTP requests, MQTT connection, and data transceiver operations via AT commands.
2) UART2 and UART3 are dedicated to communicating with other sensor modules.
Field test results demonstrate that the MG32F104 achieves seamless three-way simultaneous UART operation without resource preemption, ensuring real-time data transmission and system stability.
_EN.jpg)

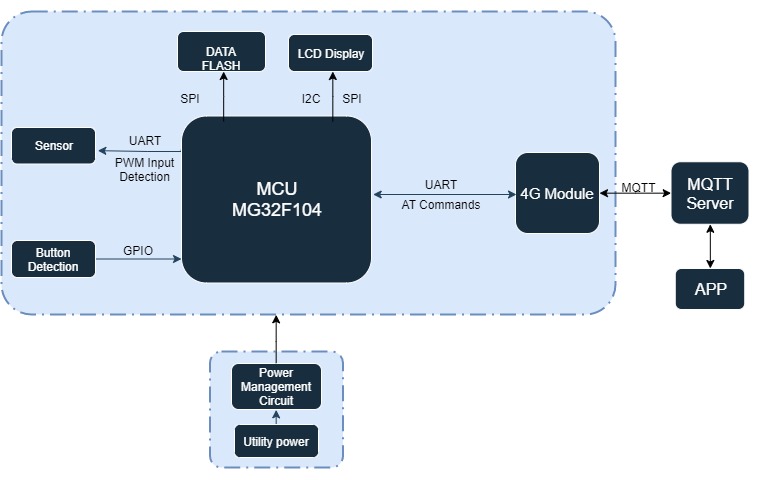

Smart sanitizer function block (MCU: MG32F104)

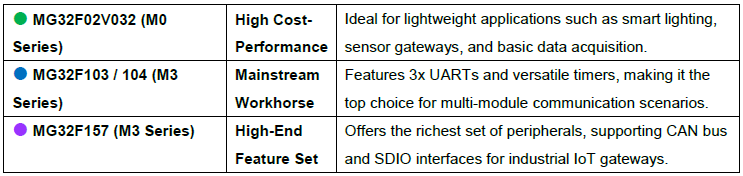

4.Product Selection Guide: From Lightweight to Advanced
For straightforward IoT architectures, Megawin Technology also provides the cost-effective M0 Series to give customers flexible options across different application tiers:
Megawin Technology offers a comprehensive product portfolio tailored to different application scenarios:
💡Key Advantage:
The entire Megawin Technology M3 Series shares hardware pin-compatibility. Migrating between models within the same system framework primarily requires minor software configuration adjustments, providing ample scalability for future product iterations.
In a highly competitive MCU landscape, Megawin Technology takes a practical approach. Instead of chasing bleeding-edge process nodes or maximum clock speeds, it fine-tunes interface configurations, power management, and operational reliability.
https://www.megawin.com.tw/products/ARM-Cortex-M3
https://www.megawin.com.tw/products/ARM-Cortex-M0
https://www.megawin.com.tw/products-sub/M0-Value-Line
