Motor Control

Water Pump Solution:


Introduction:

The high/low voltage water pumps (or drain pump) uses the MDF101A as the core MCU, which is based on a single/double resistive sensor-less FOC algorithm to achieve high efficiency and low vibration operation to ensure that the water in drainage system can be drained efficiently.

Features:


 - Based on single/double resistor non-inductive FOC algorithm, realizing high efficiency and low vibration operation, closed-loop start ensures fast and smooth zero-speed start.
 - Support soft start and fast start (maximum speed within 1 second).

 - Constant speed/constant power control.

 - 5-segment/7-segment SVPWM can be switched freely.
 - Integrated blocking detection, phase loss protection, over/under-voltage protection and over-current protection, real-time feedback of the operating status to improve system reliability.



Applications:

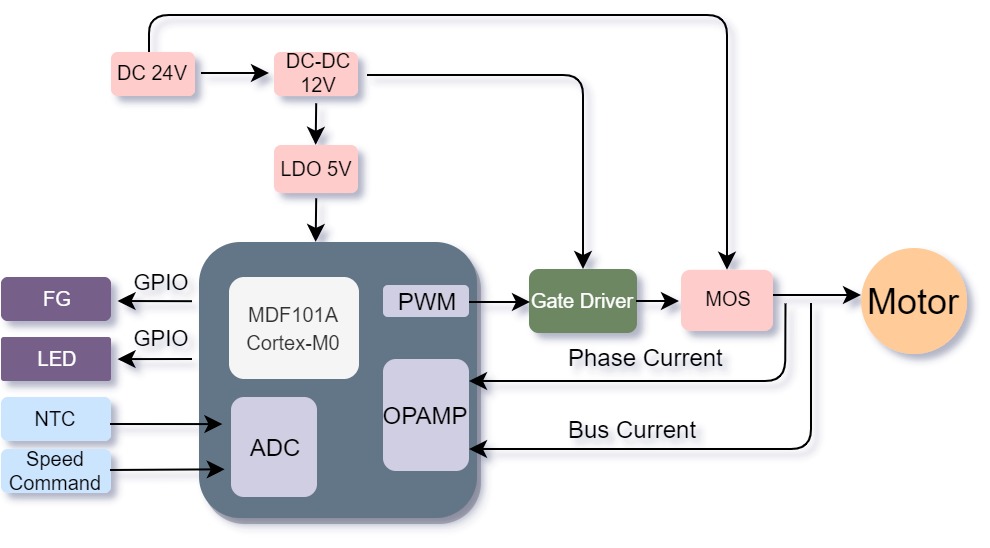

Block Diagram:




Related Products:


BLDC ARM Cortex-M0 Line: https://www.megawin.com.tw/products-sub/BLDC-ARM-Cortex-M0-Line


MDF101A
:
 https://www.megawin.com.tw/product/MDF101A


Technical Support Files  : (Please click to download)

1. ReferenceDesign Document

2. Hardware File
