High-Speed Interconnects
PCIe Fabric Switch

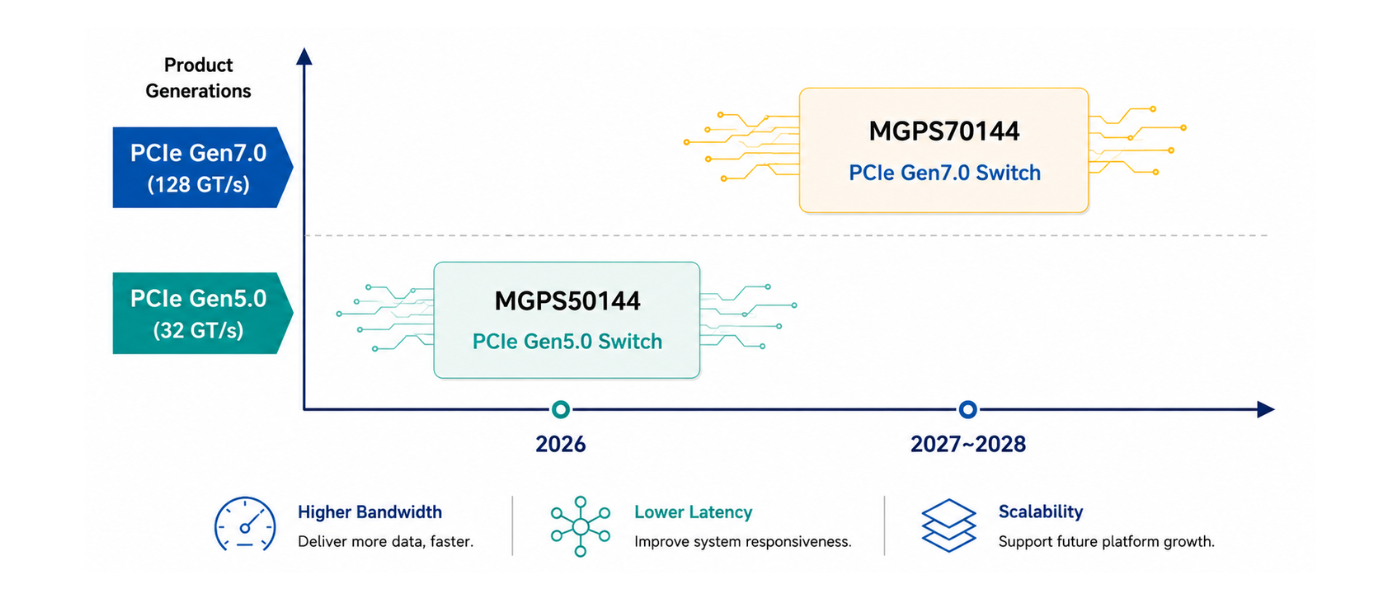

PCIe Fabric Switch is a high-performance PCIe interconnect switch IC designed for data-intensive workloads and next-generation computing platforms. With an industry-leading lane count, ultra-high bandwidth, and ultra-low latency, it enables fast, efficient, and scalable data communication. Fully compliant with the PCIe Gen5 specification and backward compatible with previous PCIe generations, the MGPS50144 provides a powerful and flexible solution for large-scale data transfer, high-performance computing, and other bandwidth-intensive applications.
SERIES :
PCIe Gen5 Switch
| item | Lanes | Description | Package |
|---|---|---|---|

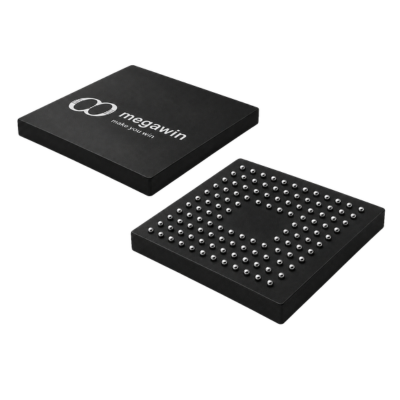

| MGPS50144 | 144 | Port Speed (Gen1~5) Independent of Others、Bifurcation Support (Auto Switch)、Supports up to 1+32 ports、Peer-to-Peer Communication、Configurable upstream or downstream port、Interrupt support includes legacy interrupt (INTA#)、MSI/MSI-X、Unique chip ID with effuse、support virtual switch mode and Ximple Link mode(Support two upstream ports to connect in nontree topologies) | FCBGA |
