Product Information

ARM Cortex-M3

M3 Base Line

Base on Arm® Cortex®-M3 as the core, With the excellent computing performance of the existing Arm® Cortex®-M0 MCU to strengthen technology development, improve Core computing performance,Flash supports Cache fast access to greatly reduce read latency. It can be applied to sweeping robots / high-end smart locks / drone control / commercial printers / POS machines / ... and other solutions. The maximum operating speed is 96 MHz, the Flash capacity is 96-256KB and the RAM is 28-36KB in various combinations, and the operating voltage is 2 V~3.6V power supply.

SERIES :

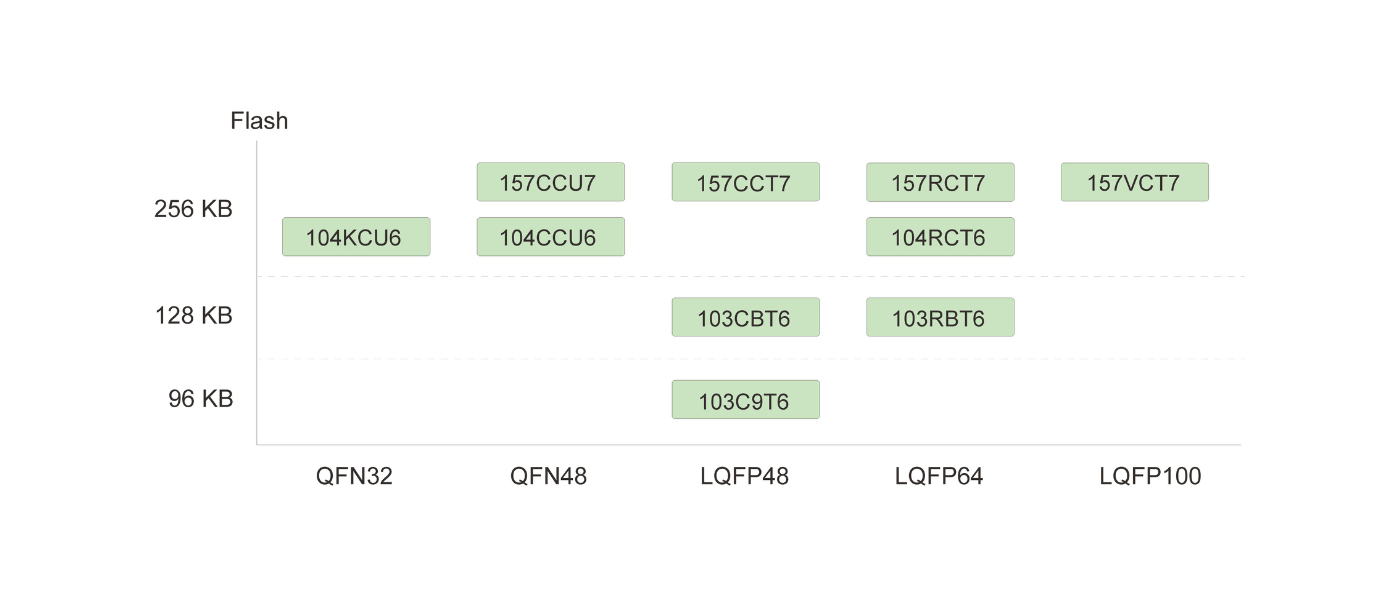

MG32F10x SERIES

item	Operating Voltage	Flash ROM	Data RAM	Max Operation Fequency	Timer(20-bit)	IO	ADC	ACMP	Communication	Package
MG32F103C9T6	2.0V~3.6V	96KB	28KB	72MHz	4+RTC、20Bit	37	12Bit、10-CH	2	UARTx3、I2Cx2、QSPI、USB、SPI M、SPI Sx2、LED SEGx8	LQFP48
MG32F103CBT6	2.0V~3.6V	128KB	28KB	72MHz	20Bit、4+RTC	37	12Bit、10-CH	2	UARTx3、I2Cx2、SPI M、SPI Sx2、QSPI、USB、I2S、LED SEGx8	LQFP48
MG32F103RBT6	2.0V~3.6V	128KB	28KB	72MHz	20Bit、4+RTC	51	12Bit、16-CH	2	UARTx3、I2Cx2、SPI M、SPI Sx2、QSPI、USB、I2S、LED SEGx8	LQFP64
MG32F104RCT6	2.0V~3.6V	256KB	36KB	96MHz	20Bit、4+RTC	51	12Bit、16-CH	2	UARTx3、I2Cx2、SPI M、SPI Sx2、QSPI、USB、I2S、LED SEGx8	LQFP64
MG32F157CCU7	2.0V~3.6V	256KB	64KB	96MHz	20Bit、8+RTC	37	12Bit、18-CH	3	UARTx5、I2Cx2、SPIx3、QSPI、CAN、USB、SDIO、CRC、AES、DACx2、ADCx3、OPAx3	QFN48
MG32F157CCT7	2.0V~3.6V	256KB	64KB	96MHz	20Bit、8+RTC	37	12Bit、18-CH	3	UARTx5、I2Cx2、SPIx3、QSPI、CAN、USB、SDIO、CRC、AES、DACx2、ADCx3、OPAx3	LQFP48
MG32F157RCT7	2.0V~3.6V	256KB	64KB	96MHz	20Bit、8+RTC	51	12Bit、18-CH	3	UARTx5、I2Cx2、SPIx3、QSPI、CAN、USB、SDIO、CRC、AES、DACx2、ADCx3	LQFP64
MG32F157VCT7	2.0V~3.6V	256KB	64KB	96MHz	20Bit、8+RTC	80	12Bit、18-CH	3	UARTx5、I2Cx2、SPIx3、QSPI、CAN、USB、SDIO、CRC、OPAx3、AES、DACx2、ADCx3	LQFP100
