ARM Cortex-M0
Cost-Efficient Line
Base on ARM Cortex-M0 , it is developed with the excellent anti-interference ability and excellent encryption technology of the traditional 8051 MCU. It has built-in multi-variable anti-dead zone pulse width modulation module (PWM), programmable pins, and more With industrial reset resources, fast I/O processing modules and fast comparators (ACMP), and multiple sets of high-speed peripheral UART, SPI, I2C and other hardware resources, it can be quickly introduced and applied to complex motor control systems. In addition, the patented DMA transmission module can support multiple interface displays (TFT-LCD) and can be applied to small and medium-sized display panels such as wireless charging/motor control/toys... etc. Maximum operating speed is 48 MHz, operating voltage is 2.0 V~5.5 wide power supply
SERIES :

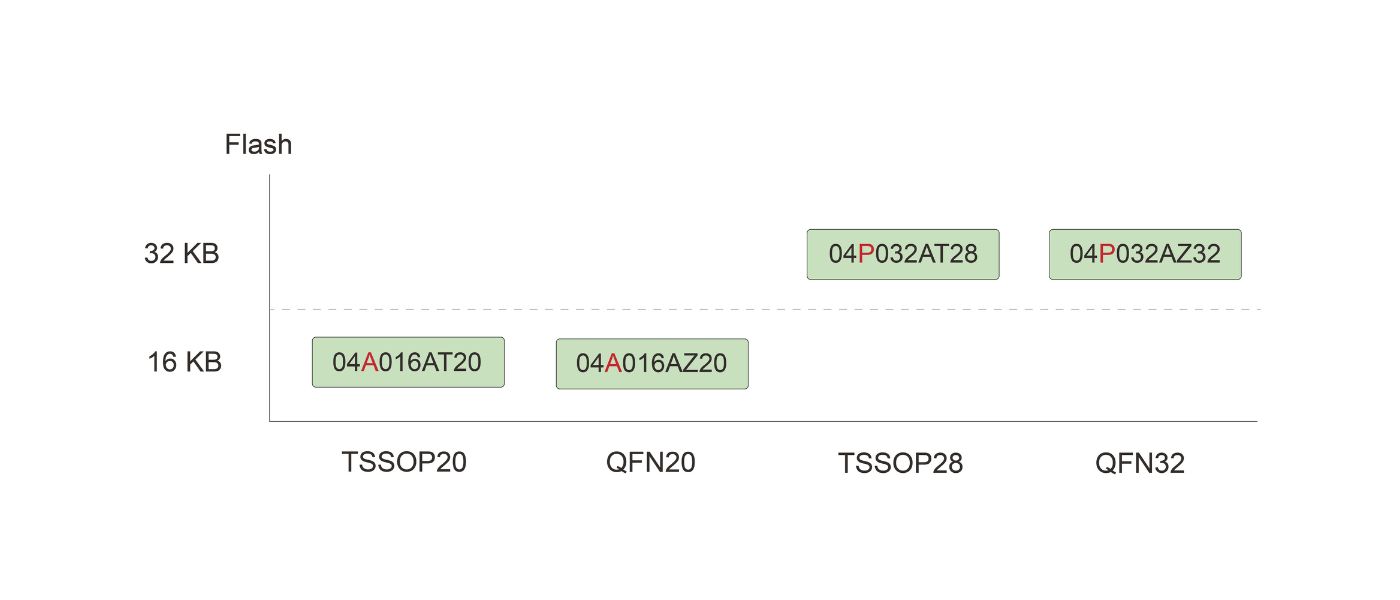

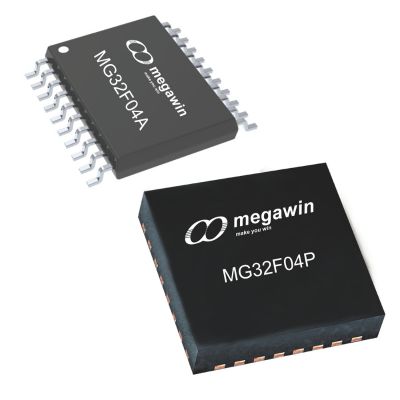

MG32F04x SERIES
| item | Operating_Voltage | Flash_ROM | Data_RAM | Max_Operation_Fequency | Timer | IO | ADC | ACMP | Communication | CCP | Package |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MG32F04A016 | 2.5V~5.5V | 16KB | 2KB | 48MHz | 3 | 18 | 12Bit、8-CH | NA | UARTx2、SPI、I2C、CRC32、UID | 5-CH | QFN20、TSSOP20 |
| MG32F04P032 | 2.5V~5.5V | 32KB | 4KB | 60MHz | 5 | 26 | 12Bit、10-CH | 2 | OPA x2、USART、UID、DMA x2、HW Divider | 5-CH | TSSOP28、QFN32 |
