ARM Cortex-M0+
Low Power Line

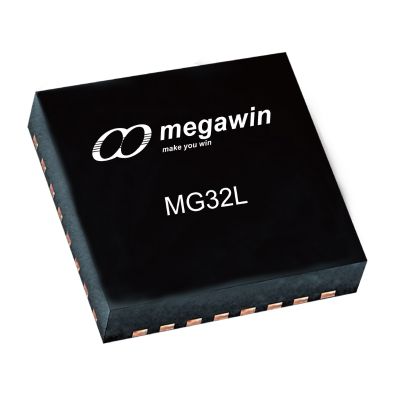

The MG32L series is Megawin Technology's entry-level 32-bit low power MCU. It uses Arm® Cortex®-M0+ as the core and has the advantage of low power consumption. It is more suitable for battery-related products... and other applications.
SERIES :

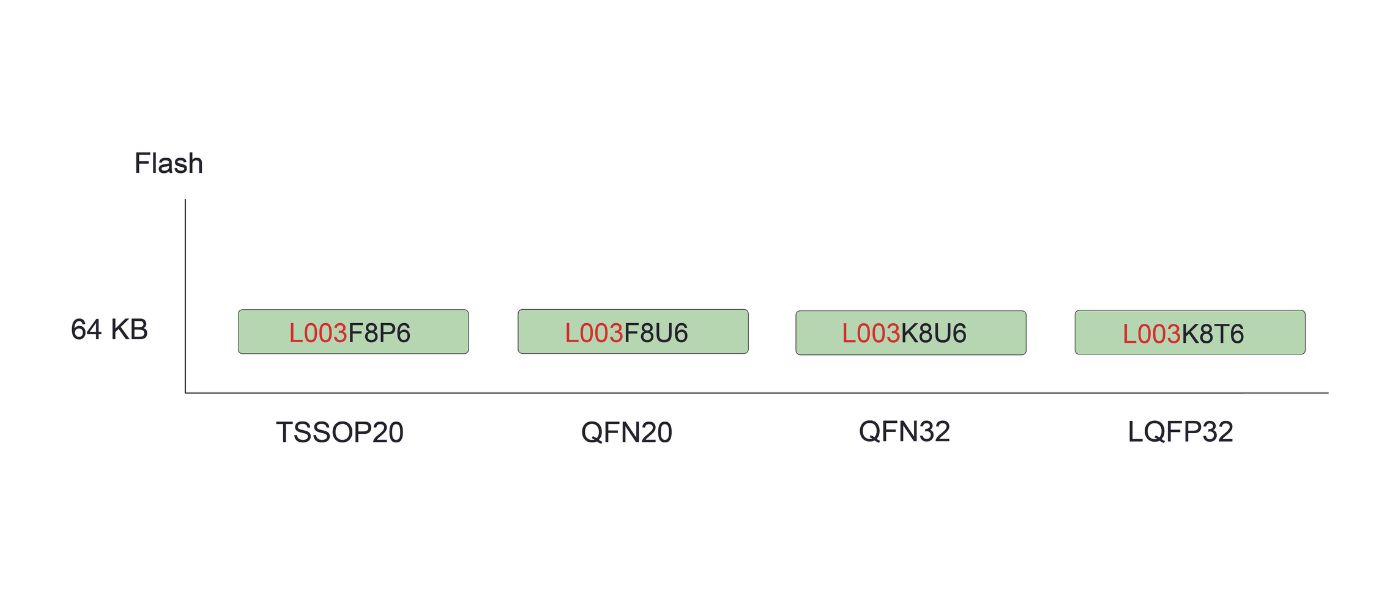

MG32L Series (Cortex®-M0+)
| item | Operating Voltage | Flash ROM | Data RAM | Max Operation Fequency | Timer | I O | ADC | ACMP | Communication | Package |
|---|---|---|---|---|---|---|---|---|---|---|
| MG32L003F8U6 | 2.5V~5.5V | 64KB | 4KB | 24MHz | 10+RTC | 16 | 12Bit、15-CH | 1 | UARTx2、LPUART、I2C、SPI、PWM、CRC16、1-wire | QFN20 |
| MG32L003F8P6 | 2.5V~5.5V | 64KB | 4KB | 24MHz | 10+RTC | 16 | 12Bit、15-CH | 1 | UARTx2、LPUART、I2C、SPI、PWM、CRC16、1-wire | TSSOP20 |
| MG32L003K8U6 | 2.5V~5.5V | 64KB | 4KB | 24MHz | 10+RTC | 28 | 12Bit、15-CH | 1 | UARTx2、LPUART、I2C、SPI、PWM、CRC16、1-wire | QFN32 |
| MG32L003K8T6 | 2.5V~5.5V | 64KB | 4KB | 24MHz | 10+RTC | 28 | 12Bit、15-CH | 1 | UARTx2、LPUART、I2C、SPI、PWM、CRC16、1-wire | LQFP32 |
