BLDC
BLDC Base Line

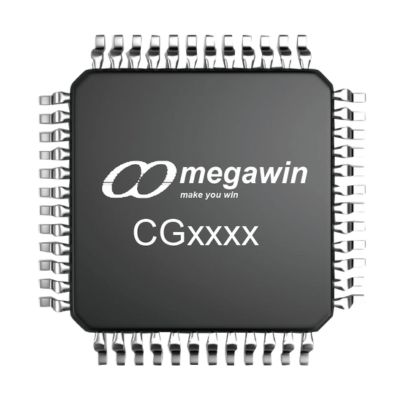

8Bit Single-Chip Microcontroller with 3 Phase BLDC motor controller and Hardware MDE core , With 40V~100V Gate driver, some item is 3 Phase PMSM/BLDC FOC sensorless motor Controller with 40~600V gate driver。
SERIES :
CG SERIES
| item | Mode | Gate Driver | VIN | LDO | VDD | Max Freq | ADC(10-bit) | Capture(16-bit) | OPA | Operating Temperature | Package |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CGH001A | Hall | NA | 5V | NA | 4.5~5.5V | 48MHz | 8-CH | 1 CH | 1 | -40~105 | SSOP28、QFN32 |
| CGH021A | Hall | 40V、P+N | 40V | 5V、30mA | 4.5~5.5V | 48MHz | 8-CH | 1 CH | 1 | -40~105 | QFN40、SSOP28(W) |
| CGH061A | Hall | 200V、N+N | 15V | 5V、30mA | 4.5~5.5V | 48MHz | 8-CH | 1 CH | 1 | -40~105 | LQFP48 |
| CGH081A | Hall | 600V、N+N | 15V | 5V、30mA | 4.5~5.5V | 48MHz | 8-CH | 1 CH | 1 | -40~105 | LQFP48 |
| CGF002A | FOC | NA | 5V | NA | 4.5~5.5V | 48MHz | 8-CH | 1 CH | 1 | -40~105 | LQFP48 |
| CGF022A | FOC | 40V、P+N | 40V | 5V、30mA | 4.5~5.5V | 48MHz | 8-CH | 1 CH | 1 | -40~105 | LQFP48 |
| CGF062A | FOC | 200V、N+N | 15V | 5V/30mA | 4.5~5.5V | 48MHz | 8-CH | 1 CH | 1 | -40~105 | QFN40、LQFP48 |
| CGF082A | FOC | 600V、N+N | 15V | 5V、30mA | 4.5~5.5V | 48MHz | 8-CH | 1 CH | 1 | -40~105 | LQFP48 |
