BMS_3S Gauge

BMS 3S Gauge Solution:

Introduction:

The MSE03GM1 provides the gauge function to monitor the battery and measure the power in the BMS.

It monitors voltage, current, temperature, and estimates SOC and SOH status.

It is also responsible for estimating the battery capacity and prolonging the battery life.

Features:

- Megawin Smooth Energy Gauge Algorithm (MSE), provide SOC/SOH

- Wake-up with current detection, include Voltage / Current / Temperature measurement function

- Provide storage area for cell production history data

- Automatic cell behavior (abnormality) status recording
- The solution also provides a GUI (Graphical User Interface)

Applications:

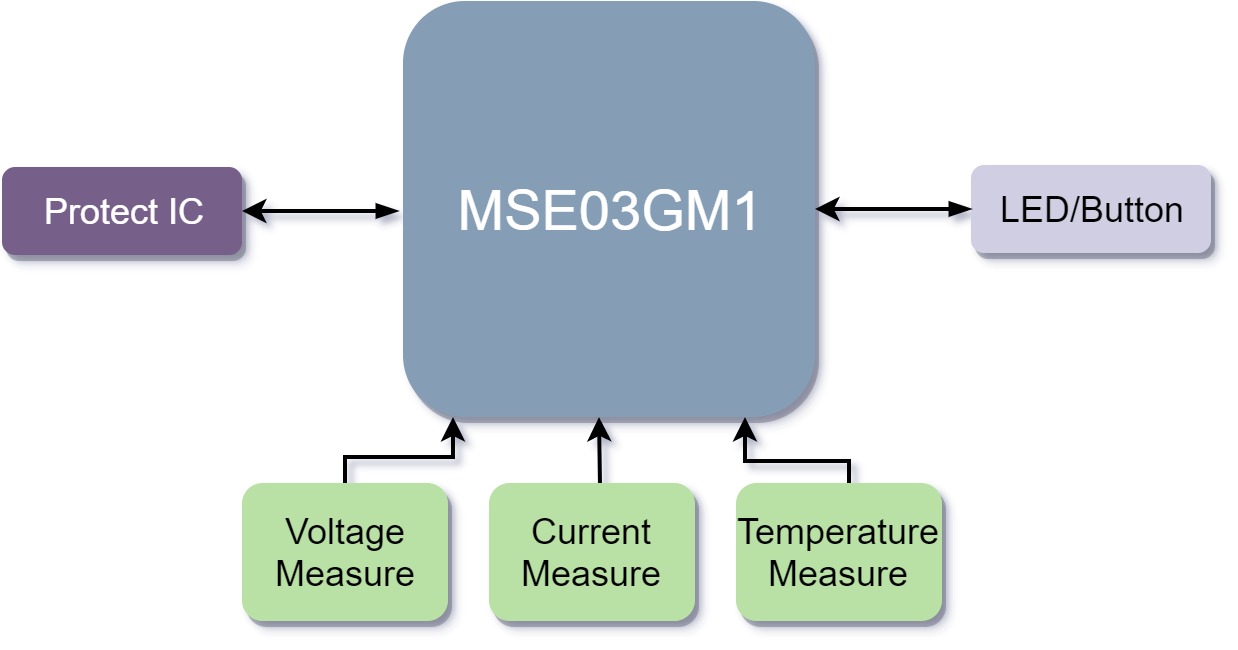

Block Diagram:
