USB Product
USB Bridge
This product segment can support USB to transfer data or command to other interface, for example UART, I2C, SPI…etc., even GPIO or PWM control. Different USB Bridges can meet different product requirements. It has good compatibility and performance, reducing the requirement for design resources. It also provides easy-to-use development UI interface and library to reduce time to market.
SERIES :
Bridge

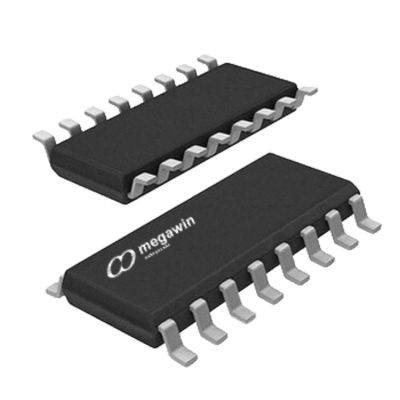

| item | Operating Voltage | USB Speed | Function | Communication | Driver | Package |
|---|---|---|---|---|---|---|
| MA111 | 3.0V~5.5V | Full Speed | USB HID to Serial Bridge | UART、TWI(I2C) Master、GPIO、SPI Master | FREE | SOP16、QFN16 |
| MA112 | 3.0V~5.5V | Full Speed | USB to UART Data Bridge(Virtual COM) | UART(TXD,RXD) | OS | SOP16、QFN16 |
| MA113 | 3.0V~5.5V | Full Speed | USB Data Bridge for UART、RS-232 Modem signal, RS-485、MS Windows Standard Driver supported | Virtual COM(TXD/RXD)、RS-232 Modem Signals、RS-485 Transceiver Control | OS | SOP16、QFN16 |
