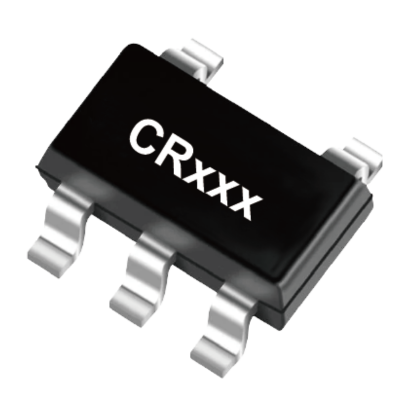

Low-dropout regulator: LDO, belongs to the power management circuit. Megawin high-performance LDO can convert high input voltage into stable output voltage in various applications, and it has the features: 1.High PSRR anti-ripple interference 2.EN Pin turns off LDO to save power 3.Ultra-low IQ value, improve voltage conversion efficiency
| item | Min VIN(V) | Max VIN(V) | IOUT(mA) | VOUT(V) | IQ(uA) | VLINE(%) | VLOAD(%) | PSRR@1kHz(dB) | COUT(uF) | EN |
|---|---|---|---|---|---|---|---|---|---|---|
| CR78L33 | 7 | 30 | 100 | 3.3 | 300 | 0.3 | 0.3 | 84 | 0.1 | N |
| CR78L05 | 7 | 30 | 100 | 5 | 300 | 0.3 | 0.3 | 84 | 0.1 | N |
| CR2105 | 7 | 100 | 50 | Adj | 23 | 0.18 | 1.25 | 65 | 10 | Y |
| CR2202 | 2.7 | 24 | 150 | 3.3/5 | 1.5 | 0.06 | 0.15 | 80 | 1 | N |
| CR2402 | 2.7 | 40 | 250 | 3.3/5 | 1.5 | 0.06 | 0.6 | 80 | 1 | Y |
| CR2503 | 2.5 | 6 | 300 | 3.3 | 0.5 | 0.6 | 1 | 60 | 1 | Y |
